Like Flowers, Like Crystals: The Alluring Beauty of Crystalline Glazes

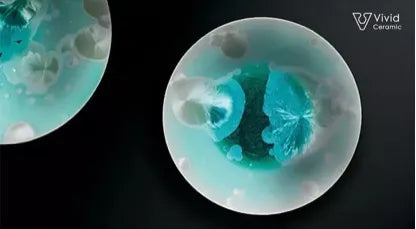

Crystalline glazes are a type of decorative art glaze characterized by the presence of distinct, coarse crystals within the glaze. Originating from colored glazes, their defining feature—what sets them apart from ordinary glazes—is the visible crystalline structures, or "crystal flowers," that form on or within the glaze surface.

Classification by Crystal Form and Size

1. Crystal Morphology: The "Flowers"

Crystalline glazes are categorized by their crystal morphology. These patterns are incredibly diverse, including:

Classic & Nature-Inspired: Tenmoku, raindrop, tea dust, rust flower, and chrysanthemum-shaped patterns.

Geometric & Artistic: Radial, linear, splash, star-shaped, pine needle, spiral, and feather-like patterns.

2. Crystal Size: Macro vs. Micro

Coarse (Macro) Crystalline Glazes: These crystals are visible to the naked eye, with diameters reaching up to 12 cm. The surface is either fully or partially covered by well-developed crystals, or they may form beneath the surface within a glassy matrix. Typical examples include zinc silicate crystalline glazes and gold star glazes.

Microcrystalline Glazes: These crystals are extremely small, resembling stars in the sky—some are only visible under a microscope. Their morphology is typically needle-like, plate-like, or tiny spherical.

The Science: Basic Composition Characteristics

The fundamental composition of crystalline glazes requires lower silica ($SiO_2$) and alumina ($Al_2O_3$) content to reduce high-temperature viscosity. This ensures the glaze retains adequate fluidity for crystals to grow while the firing temperature remains sufficiently high.

The Technical Ratios:

$SiO_2$ content: 40–50%.
$Al_2O_3$ content: Below 8%.
$SiO_2/Al_2O_3$ ratio: 12–15:1.

Expert Note: Different crystallizing agents have varying crystallization difficulties, so the $SiO_2/Al_2O_3$ ratio of the base glaze must be adjusted accordingly.

Raw Material Requirements

Mineral Materials (e.g., feldspar, quartz): These should be finely ground to lower the melting temperature and accelerate the dissolution of substances, promoting later crystal formation.

Crystallizing Agents: These should be coarser to leave residual crystal nuclei in the glaze, facilitating crystal growth.

Application and Firing Techniques

1. Glazing

The application is thicker than ordinary glazes, typically over 1 mm. Due to high fluidity, we apply a thicker layer on the upper surface and a thinner one on the lower part of the piece.

2. The Firing Cycle

Preparation: Always use kiln setters to prevent adhesion to shelves, protecting both the kiln furniture and the ware.

Heating: Rapidly raise the temperature to approximately 1000°C (at a rate of about 300°C/hour). After the glaze melts, hold for a short period, then quickly heat to the peak temperature to avoid melting all crystal nuclei.

Cooling: Rapidly drop to the specific holding temperature to promote optimal crystal growth.

The Art of Kiln Transformation

Kiln transformation is a dialogue between fire and glaze—a game of time and temperature. Every kiln opening is an unknown journey. Because each piece is shaped by natural kiln transformation, every crystalline glaze creation is a unique, one-of-a-kind masterpiece.

FAQs

1, What makes crystalline glazes different from regular pottery glazes?

Unlike ordinary glazes that appear as a uniform, solid color or texture, crystalline glazes feature distinct, coarse "crystal flowers" that grow within the glaze during a specialized cooling process. These visible structures are often iridescent and organic, making each piece a one-of-a-kind result of kiln transformation.

2, How large can the crystals in the glaze grow?

In coarse (macro) crystalline glazes, the crystals can grow quite large, with some diameters reaching up to 12 cm. The size is determined by the specific chemistry of the glaze—typically low in alumina—and the duration of the "holding temperature" during the cooling phase.

3, Are crystalline glaze ceramics safe for food and daily use?

While many crystalline glazes are visually stunning, they are often used for decorative art rather than functional dinnerware. Technically, the low alumina ($Al_2O_3$) content required for crystal growth (typically below 8%) can make the glaze less chemically stable and more prone to scratching or leaching if used with acidic foods.

4, Why is the firing process so difficult for these glazes?

Firing crystalline glazes is a high-stakes "dialogue between fire and glaze". Because the glaze must be fluid enough to allow crystals to grow, it often runs down the piece, requiring the use of kiln setters to protect the equipment. Furthermore, the cooling curve must be precisely controlled to hit the exact holding temperature where crystals bloom.

5, Can you predict where the "crystal flowers" will appear?

Not entirely. While a ceramic expert can influence the morphology—such as star-shaped, spiral, or needle-like patterns—through glaze composition and firing schedules, the exact placement and final form are shaped by natural kiln transformation. This uncertainty is what makes every opening of the kiln an "unknown journey".



Vivid Ceramic: Crafting Timeless Art with Passion

Vivid Ceramic is a premium artisan studio specializing in handcrafted ceramics and specialty glazes. Our team of professional ceramicists combines years of technical expertise with a lifelong love for craftsmanship to create functional art for the modern home. From our signature Crystalline Glaze collections to traditional Jian Ware, we are committed to preserving the beauty of ceramic heritage while pushing the boundaries of innovation.
